IonoVit S for fast hole drilling
IonoVit S is a high-performance dielectric designed for economic and fast working from an electrode diameter of 0,5 mm. It is also suitable for the processing of aluminum. Work pieces made of ferrous metals are temporarily protected from corrosion.
IonoVit S is a ready-to-use product. The concentration is regulated using a hand refractometer: The refractometer display for the ready-to-use IonoVit S is 7,0 % Brix.
Measuring device:
Refractometer 7% Brix (water down only with deionised water)
Peripheral requirement:
Water treatment
Dielectric aggregate with filter
Integrate the cooling coil into the cooling system – recommended for reproducible quality (option) –
Normal electrode quality is sufficient
IonoVit S – Your benefits
Free of heavy metal and chlorine compunds
Low electrode wea
No foaming
Little time exposure during drilling
Temporary corrosion protection
Mild in odour
IonoVit 0 for precision hole drilling
This new development by oelheld, a water-based medium which contains proper additives, guarantees the manufacturing of reproducible and high-quality holes for electrode diameters of 0,1 – 3,0 mm and larger.IonoVit 0 is delivered ready-to-use. The brix-value is in a range of 5% – 7%. A dielectric aggregate (water treatment) is necessary, which is responsible for a good quality in cooperation with the mixedresin cartridge. The medium should be cooled as otherwise a steady performance cannot be reached.
Measuring device:
Refractometer 5% – 7% Brix (water down only with deionised water)
Conductivity meter: conductance 0 – 10 μS/cm
pH-value test strip 5 – 7
Peripheral requirement:Water treatment
Dielectric aggregate with filter and deionised resin absolutely necessary
Integrate the cooling coil into the cooling system – recommended for reproducible quality (option) –
Good electrode quality (electrode with bar)
IonoVit 0 – Your benefits
Steel machining
No corrosion formation
Free of heavy metal and chlorine compounds
Carbide machining
No visible cobalt leaching at bore entrance
Technological changes at the machine are not necessary
No machine soiling
Free of heavy metal and chlorine compounds
Distinction

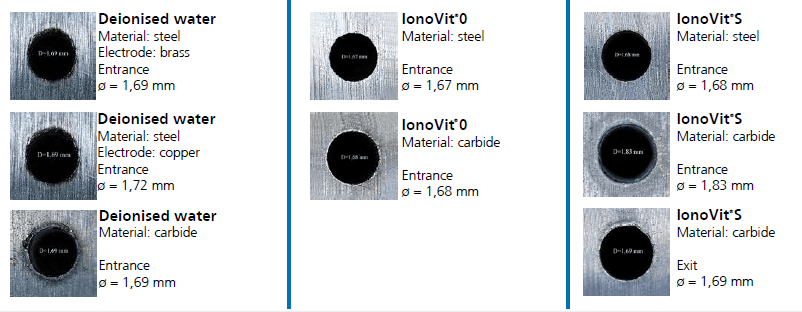

Drill holes in steel and carbide (electrodes ø 1,5mm)

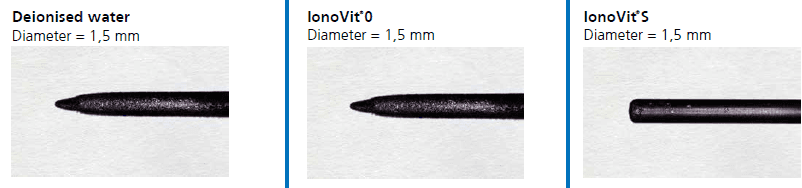

Electrode wear

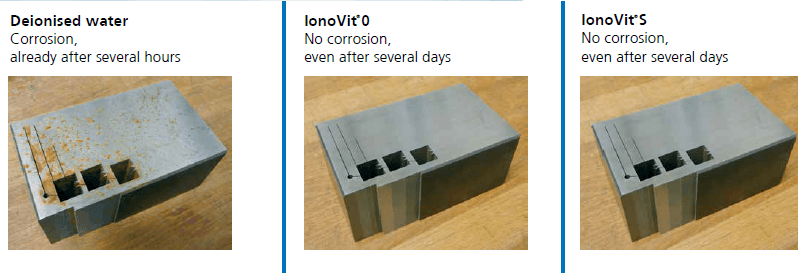

Corrosion
Cleanness

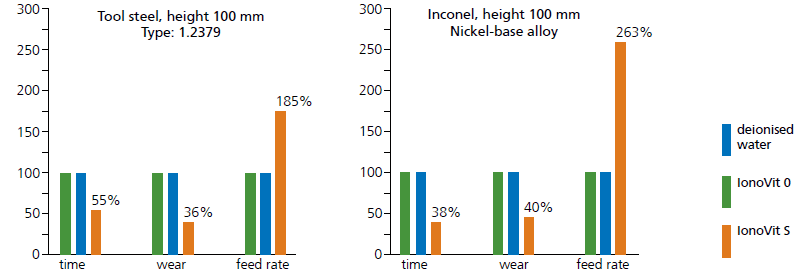

Benefits of IonoVit S against deionised water / IonoVit 0

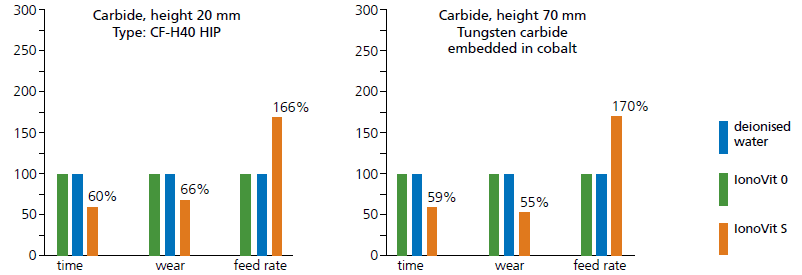

Benefits of IonoVit S against deionised water / IonoVit 0
